JBL Club 122SL Subwoofer

Shallow-mount 12” (300mm) & 10” (250mm) component subwoofer with switchable 2- or 4-ohm impedance

Club 122SL

Description

Strong on Performance, Big on Flexibility

JBL Club shallow-mount subwoofers deliver deep, powerful bass that will elevate your system to the next level. Utilizing our proprietary cone design and high roll surrounds, they are extremely efficient and require less power to deliver exceptional performance. The JBL CLUB shallow-mount subwoofers are versatile, performing well in both sealed and bandpass box configurations, and delivering powerful, punchy, and accurate bass in all settings. They also feature SSI™ (Selectable Smart Impedance), an exclusive impedance switch that allows you to select the optimum impedance, 2 or 4 ohms, for your chosen amplifier and overall system layout.

Features

  • SSI™ (Selectable Smart Impedance)
  • Aluminum Woofer Cone
  • Vented Basket Design for System Cooling
  • High-Roll Rubber Surrounds
  • Purposeful Design

SSI™ (Selectable Smart Impedance)

Most car audio system designs call for 2- or 4-ohm impedance. Club shallow-mount subwoofers feature an exclusive dual impedance switch that lets you choose either load impedance option depending on your particular system and amplifier choice. Not available from any other manufacturer, SSI allows you to reconfigure your system by simply flipping a switch.

Aluminum Woofer Cone

A proprietary aluminum woofer cone has been engineered to provide high output while maintaining its shape to full excursion, ensuring low distortion and minimal unwanted audible acoustical artifacts. The end result is deep, full bass performance that is both musical and impactful.

Vented Basket Design for System Cooling

The Club shallow-mount subwoofer’s vented basket keeps the voice coil cool even at high output levels, ensuring long-term reliability.

High-Roll Rubber Surrounds

Club shallow-mount subwoofers incorporate a high-roll surround that provides superior cone edge suspension while maximizing excursion. It not only increases the cone area but also provides remarkable linear stability and reliability.

Purposeful Design

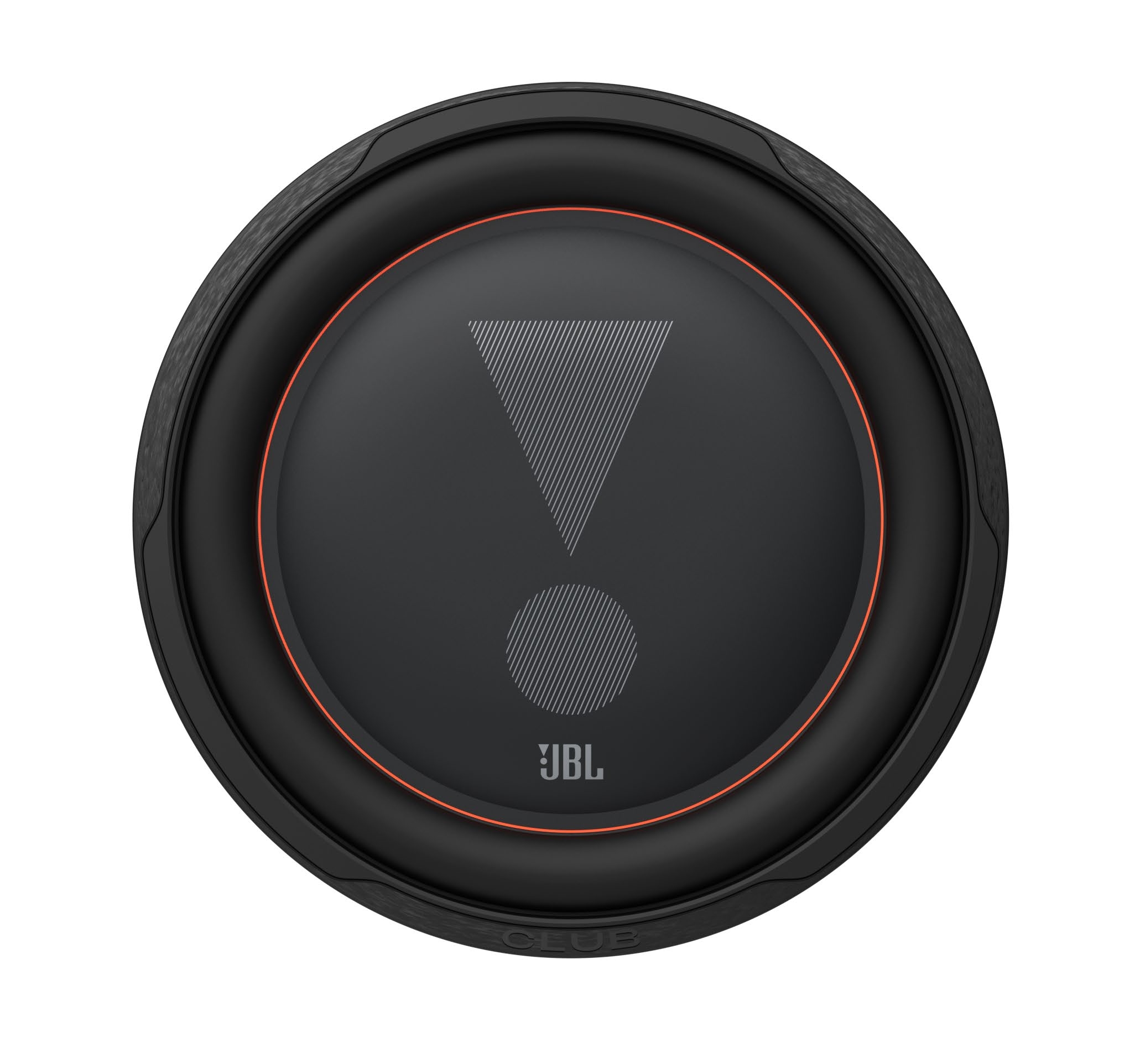

JBL Club shallow-mount subwoofers feature a large inverted dust cap mated to a JBL orange cone with a subtle reveal for a pop of color. The slash pattern forms a JBL Horn prominently on the dust cap. The unique surround design allows the trim ring to press fit into it and conceal any fasteners, giving the subwoofers a sleek, clean appearance when installed.

CLUB 122SL

  • Subwoofer: 12” (300mm) Aluminum Driver
  • Power Handling: 400W RMS, 1200W peak
  • Sensitivity (1W/1m): 84dB
  • Frequency Response (-6dB): 30Hz – 400Hz
  • Nominal Impedance: 2 or 4 ohms, switch-selectable
  • Voice Coil Diameter: 2” (50mm)
  • Cutout Diameter: 11” (279.04mm)
  • Mounting Depth: 3-1/4” (82.5mm)

What’s in the Box

CLUB 122SL

  • 1x 12” Subwoofer
  • 1x EVA Foam Gasket
  • 1x Owner’s Manual

Additional information

Models

CLUB 122SL, CLUB 102SL
