JBL Club 6500C Speaker

Series of competitively priced coaxial and component speaker systems

Club 6500C

Description

High Performance – For Everybody

Club coaxial and component speakers bring legendary JBL sound to more vehicles. Their compact design means they’ll fit in most cars and trucks on the road, while high sensitivity delivers outstanding performance, even when they’re powered by factory stereos. Rugged polypropylene cones with the Patented Plus One™ design deliver hard-hitting bass and long performance life. PEI balanced dome tweeters play smooth highs. Available in a range of standard sizes – 3″, 4″, 5-1/4″, 6″, 6-1/2″, 6″ x 8″ and 4″ x 6″ coaxial, 6″ x 9″ 3-way, and 5-1/4″, 6-1/2″, and 6″ x 9″ component – they’re the perfect upgrade from factory speakers.

Features

  • Acoustically Damped, UV-Resistant Polypropylene Cone
  • Plus One™ Woofer Cone Architecture
  • PEI Balanced Dome Tweeters
  • High-Sensitivity Design
  • Adjustable Tweeter Output Level
  • Reduced Critical Dimensions
  • Competitive Pricing

Features and Benefits

Acoustically Damped, UV-Resistant Polypropylene Cone
Every Club speaker’s woofer cone is designed to deliver clean, non-resonant sound quality while standing up to the demanding heat and humidity of the car environment.

Plus One™ Woofer Cone Architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output, and greater musical character.

PEI Balanced Dome Tweeters
Club speakers play smooth, clear high frequencies with excellent dispersion, thanks to the PEI balanced dome tweeters.

High-Sensitivity Design
Club speakers’ efficiency produces plenty of sound from the power they’re fed, making them ideal for any application, even when they’re driven by relatively low-powered factory stereos.

Adjustable Tweeter Output Level
The new added model – Club 6522 offers a tweeter output level control of 0dB or +3dB to optimize system linearity based on installation location.

Reduced Critical Dimensions
Club speakers are available in a range of standard sizes and feature a compact design that allows them to fit in just about any vehicle on the road today. That means signature JBL sound in more vehicles.

Competitive Pricing
Club speakers provide signature JBL sound at affordable prices.

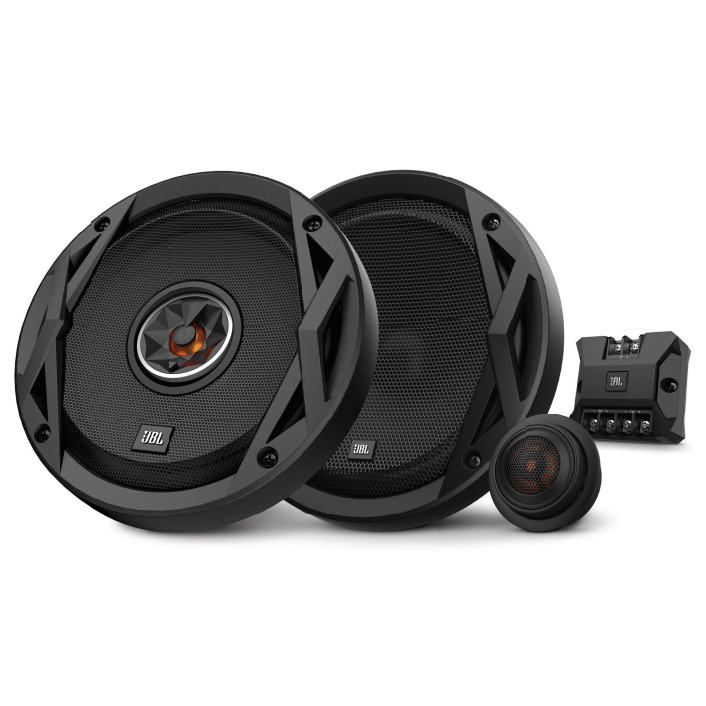

Club 6500C

  • Description: 6-1/2″ (160mm) component speaker system
  • Power Handling: 60W RMS, 180W peak
  • Sensitivity (@ 2.83V): 92dB
  • Frequency Response: 55Hz – 20kHz
  • Impedance: 3.0 ohms

Club 6500C

  • 1 pair of woofers
  • 1 pair of tweeters
  • 1 pair of crossovers
  • 1 pair of tweeter surface mount accessories
  • 1 pair of tweeter flush mount accessories
  • 1 pair of tweeter nuts
  • 1 pair of tweeter flat washers
  • 1 pair of woofer adapter rings
  • 1 pair of woofer grilles
  • 6 tweeter mounting screws
  • 8 small woofer mounting screws
  • 8 large woofer mounting screws
  • 8 crossover mounting screws
  • 8 speed clips
  • Foam mounting tape
  • Owner’s manual

Additional information

Models

Club 3020, Club 4020, Club 5020, Club 6520, Club 6420, Club 8620, Club 9630, Club 5000C, Club 6500C, Club 9600C, Club 750T, Club 6522
