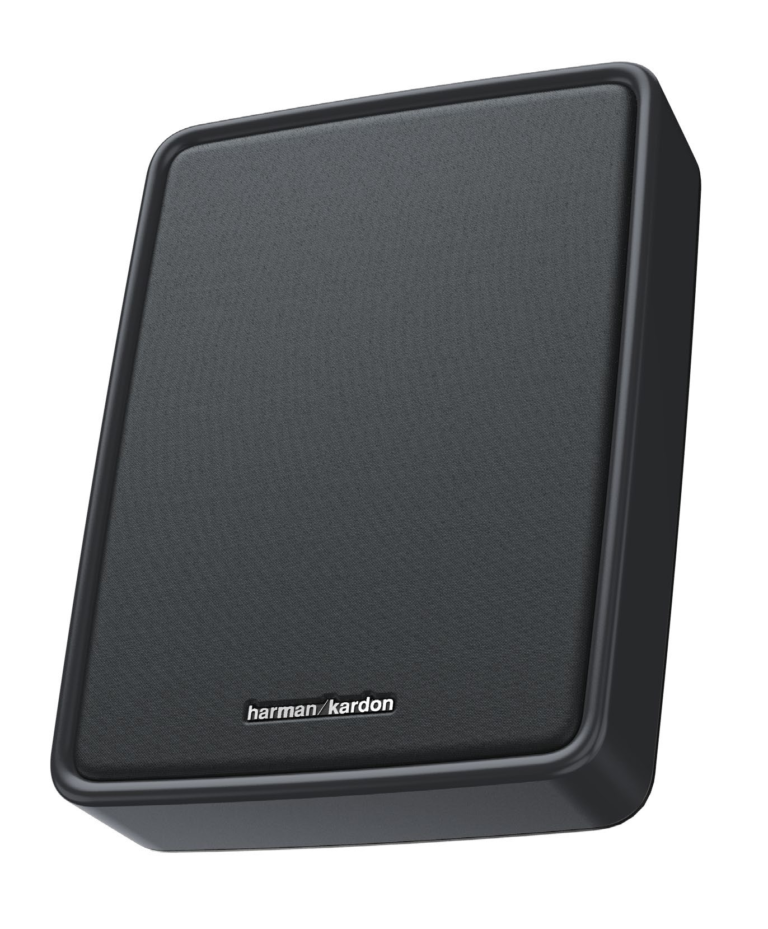

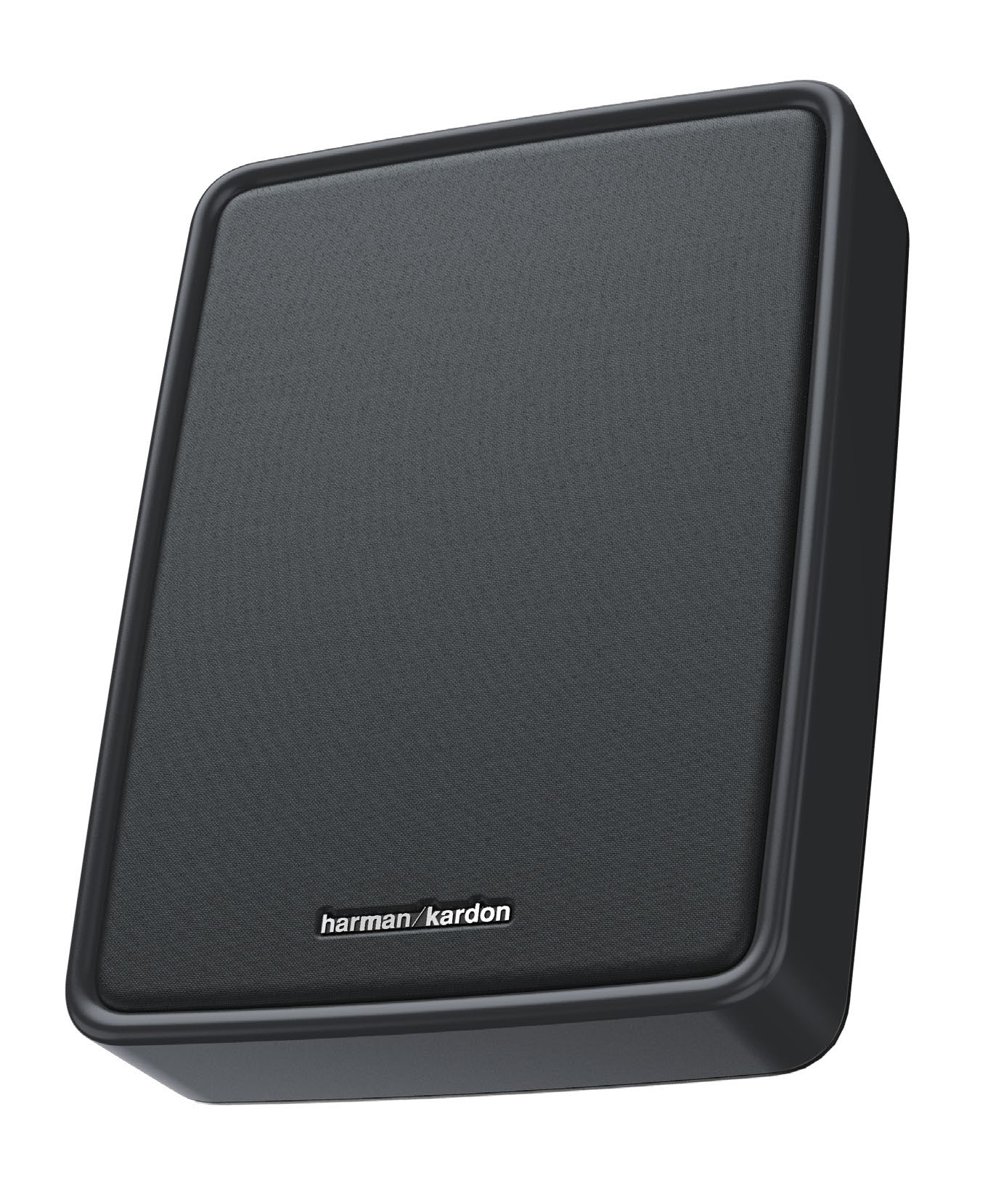

Powerful Bass, Ultra-compact Space
HK FEEL 700 reproduces deep, powerful bass while taking up minimal space
Easy Upgrade with Series Wiring Capability
HK FEEL 700 can be connected in series to a second (sold separately) for even
more bass output. This is achieved by daisy chaining, with no need for complex
wiring or installation, and is independently adjustable.
Efficient Class D amplifier
The amp that powers the FEEL 700 produces minimal heat, and it doesn’t
require a lot of current from the car’s electrical system.
Crossover Control
An adjustable crossover (LOW PASS FILTER: 50Hz – 120Hz) lets you adjust how
much upper bass and mid-bass the FEEL 700 produces. Fine-tune the crossover
to achieve a smooth transition from the FEEL 700 to the rest of the system’s
speakers.
Flexible EQ Adjustments
Level control (GAIN) adjusts the HK FEEL 700’s volume to the other speakers in
your system, while BASS BOOST (0-12dB) control lets you minimize peaks or
dips in bass frequencies in your car’s acoustic environment.
Line- and High-level Inputs
For added installation flexibility, the FEEL 700 features both line- and high-level
inputs.
Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design is not only Ultra-compact size, but
the ALL IN ONE is combined elegant Harman Kardon clean design language
and powerful acoustic performance.

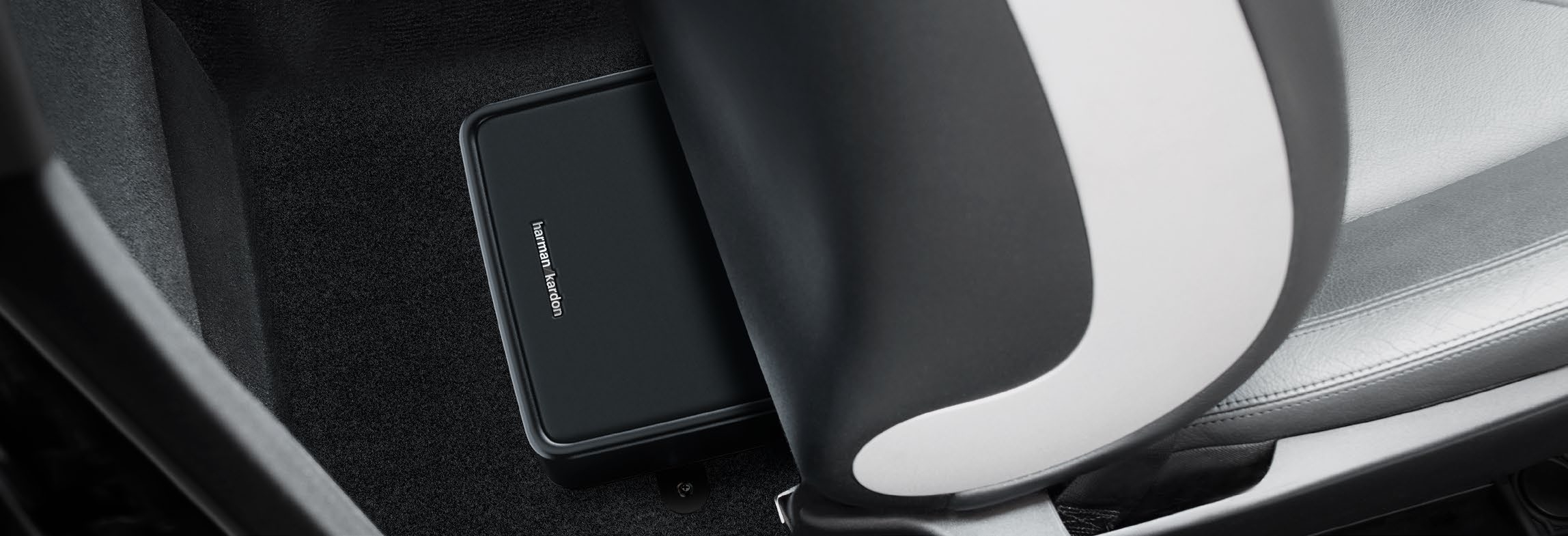

Harman/Kardon’s Clean Aesthetic Design
Clean, powerful presence communicates clean, powerful bass. Harman/
Kardon leverages its distinct design language in the car beautifully. Clean
corners and edge treatments maximize Feel 700’s internal air volume, critical
for bass performance. Wrapping the grille in an automotive grade fabric allows
for Feel 700 to live in harmony with automotive carpets. Pillowing the edges of
the fabric grille sub-flush to the aluminum frame’s outer edge protects it from
second row passenger feet. Finishing the clean appearance is the aluminum
badge, justified forwards the bottom edge, quietly, yet proudly presenting itself
in the vehicle.

General specifications
• Driver Complement: super powerful 7″ (165mm) Subwoofer
• Amplifier Power: Class D, 125Wrms; 250W Max
• Frequency Response: 40Hz – 150Hz
• Fuse: 15A
• Maximum Current Draw: 14 A
• Quiescent Current Draw: <700 mA
• Input Sensitivity: 0.10 V – 5.0 V Low-Level Input; 0.5 V – 25V
High-Level Input
• Crossover Frequency: 50 Hz – 150 Hz
• Crossover Slope: 12 dB/octave
• Bass Boost: 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H): 10-1/4″ x 7-11/16″ x 2-5/16″ (260mm x 195mm
x 58mm)
• Weight: 7.7 lbs (3.5kg)

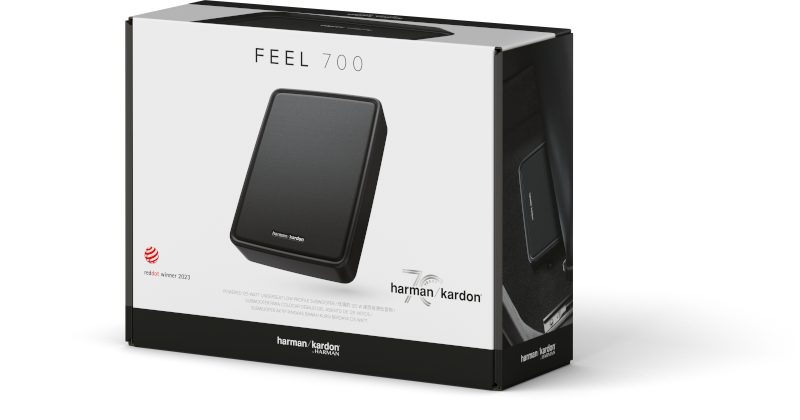

What’s in the box
1x Subwoofer
2x Wiring harness for power and speaker level input (300mm)
4x Mounting plates
8x M4x6 Philip screws
4x M4x25 Philip screws
1x 15A Fuse
1x Safety sheet
1x OM
