Description
Plug & play under-seat subwoofer for select BMW
vehicles.
The Harman/Kardon Flow 80 subwoofer delivers true, accurate and
powerful bass performance thanks to its space saving inverted
acoustic structure and powerful neodymium magnet motor with
a large 2-inch voice coil. Designed to integrate flawlessly and
equipped with a BMW-Specific mounting chassis and plug-and-play
connector for a direct fit into select BMW models underneath the
front seat. Plus, it also can be used to enhance bass performance in
luxury Audi, Porsche vehicles. Keeping with Harman/Kardon’s clean
design language, the silhouette of the speaker is a simple circle. The
fabric-wrapped grill is reminiscent of other Harman/Kardon speakers
and protects the cone from falling debris. The front magnet creates
the illusion of pushing the cloth grill into the speaker. The magnet’s
metal grill uses the iconic Harman/Kardon 60-degree slash pattern,
based on the “/” in Harman/Kardon, which provides venting for peak
performance.
Features
- Inverted Acoustic Structure
- Neodymium Magnetic Motor
- 2″ (50mm) Voice Coil Wound on TIL (Glass Fiber) Former
- BMW-specific Chassis with Plug-and-play Connector is Included
- Harman/Kardon’s Clean Aesthetic Design
Inverted Acoustic Structure
Flow 80 utilizes an inverted space saving acoustic structure to achieve maximum
excursion in shallow mount applications, while still reproducing powerful and
accurate low frequencies.
Neodymium Magnetic Motor
Neodymium magnets deliver up to 20 times the magnetic field per unit volume
compared to Ferrite magnet to maximize performance while minimizing bulk
and weight.
2″ (50mm) Voice Coil Wound on TIL (Glass Fiber) Former
Flow 80 is engineered with a 2″ voice coil with a high temperature resistant TIL
(Glass Fiber) former for exceptional power dissipation and stability.

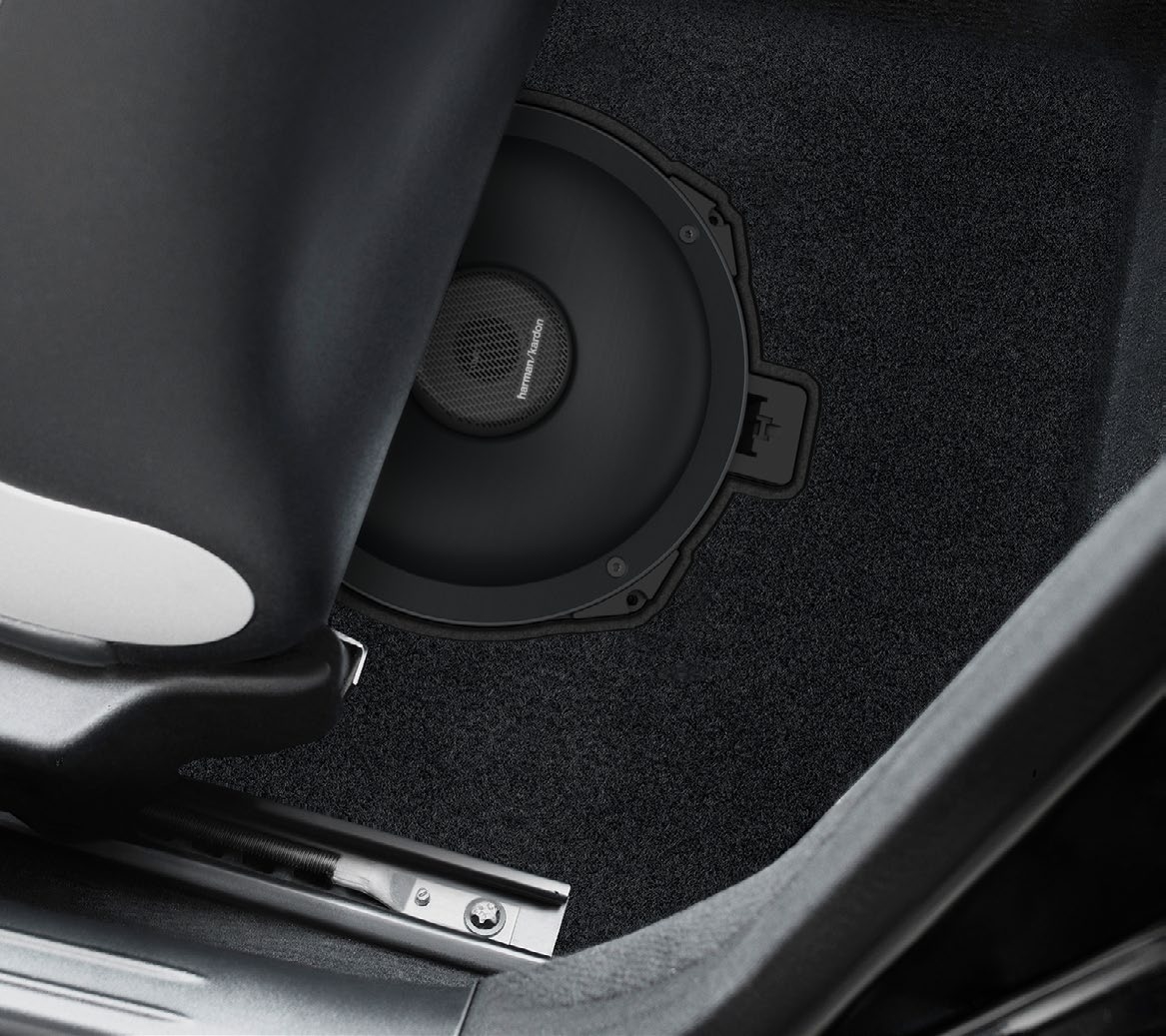

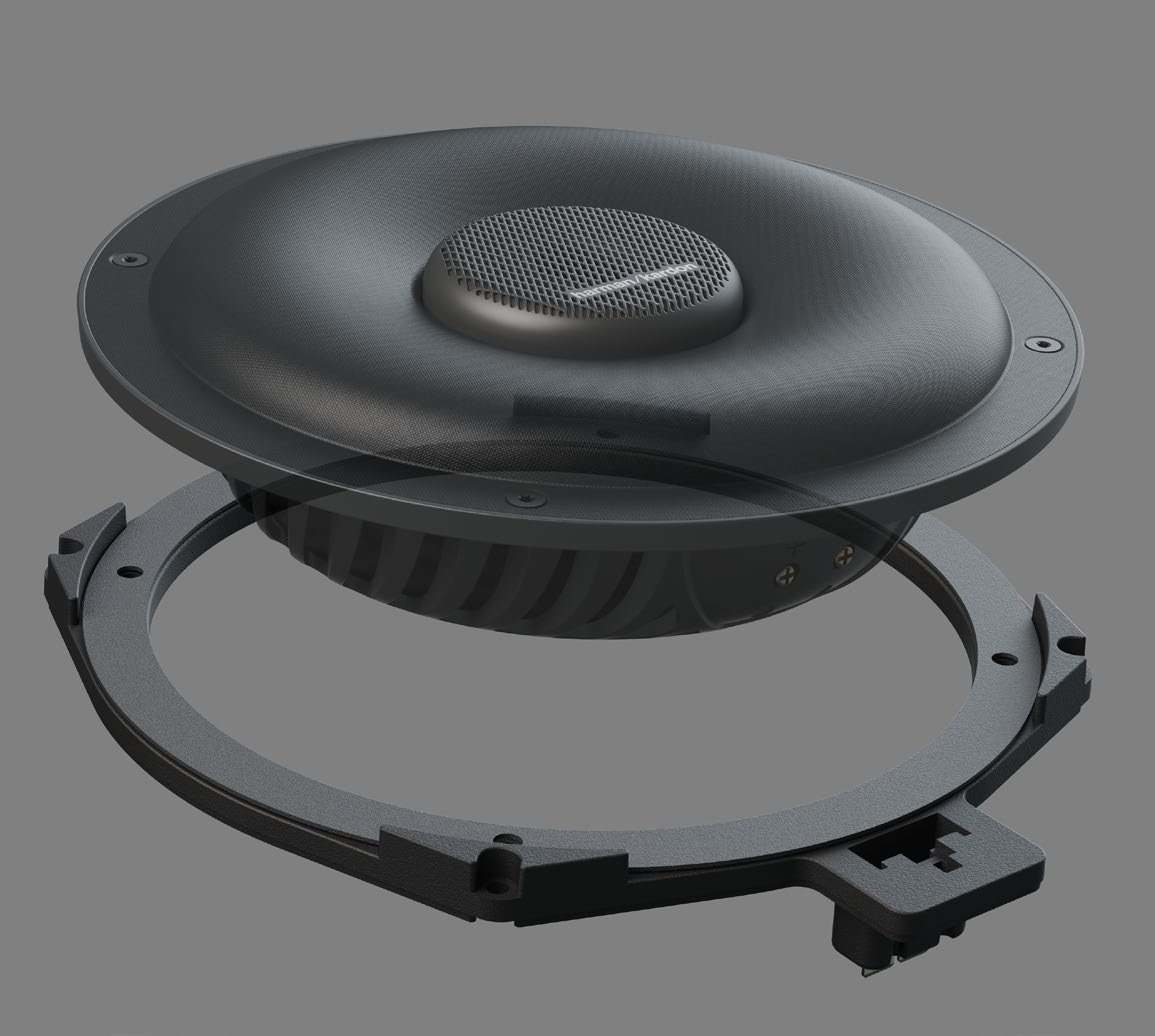

BMW-specific Chassis with Plug-and-play Connector is Included
Flow 80 is supplied with a BMW-specific chassis and plug-and-play connector,
which allows a “direct replacement” and makes for quick and easy installation
of the select BMW models underneath the front seats.
Harman/Kardon’s Clean Aesthetic Design
Flow 80 keeps with Harman/Kardon’s clean aesthetic, the silhouette of the
speaker is a simple circle. The fabric-wrapped grill, reminiscent of other
Harman/Kardon speakers, protects the cone from fallen debris under the seat.
The front magnet creates the illusion of pushing the cloth grill into the speaker.
The magnet’s metal grill uses the iconic Harman/Kardon 60-degree slash
pattern, based on the “/” in Harman/Kardon, which provides venting for peak
performance.
General specifications
• Subwoofer: 8” Polypropylene Driver
• Power Handling: 125W RMS, 375W peak
• Sensitivity (1m/1w): 85dB
• Frequency Response (-6dB): 45Hz – 1kHz
• Nominal Impedance: 4 ohms
• Voice Coil Diameter: 2″ (50mm)
• Mounting Depth: 1-11/16” (43mm)
• Cutout Hole: 7-3/16” (182.2mm)
What’s in the box
1x Subwoofer
1x BMW-specific chassis with plug-and-play connector
1x Subwoofer cushion (EVA)
1x BMW-specific chassis cushion (EVA)
4x Screws
1x QSG
