Description

Engineered for the ultimate sound experience.

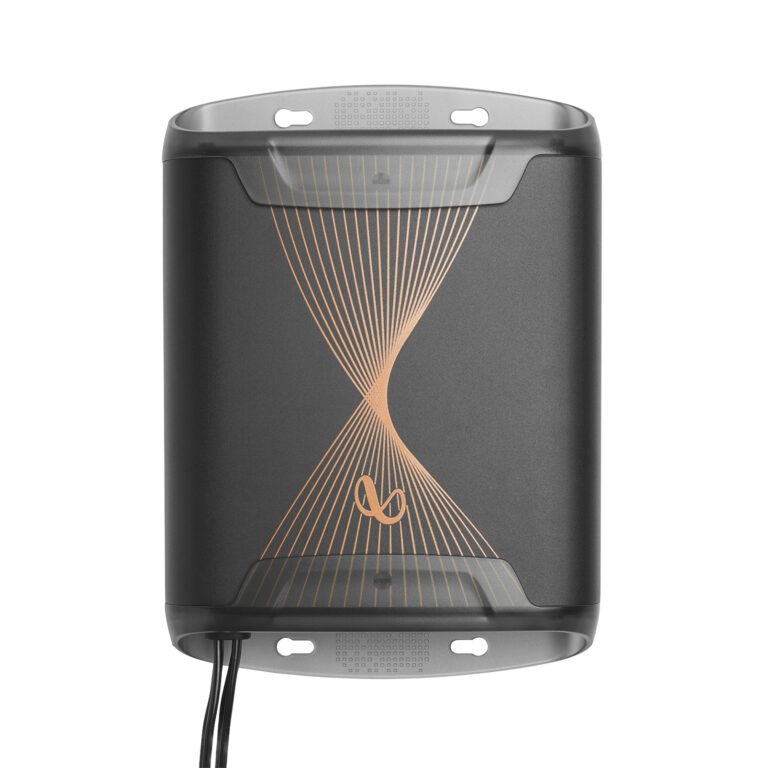

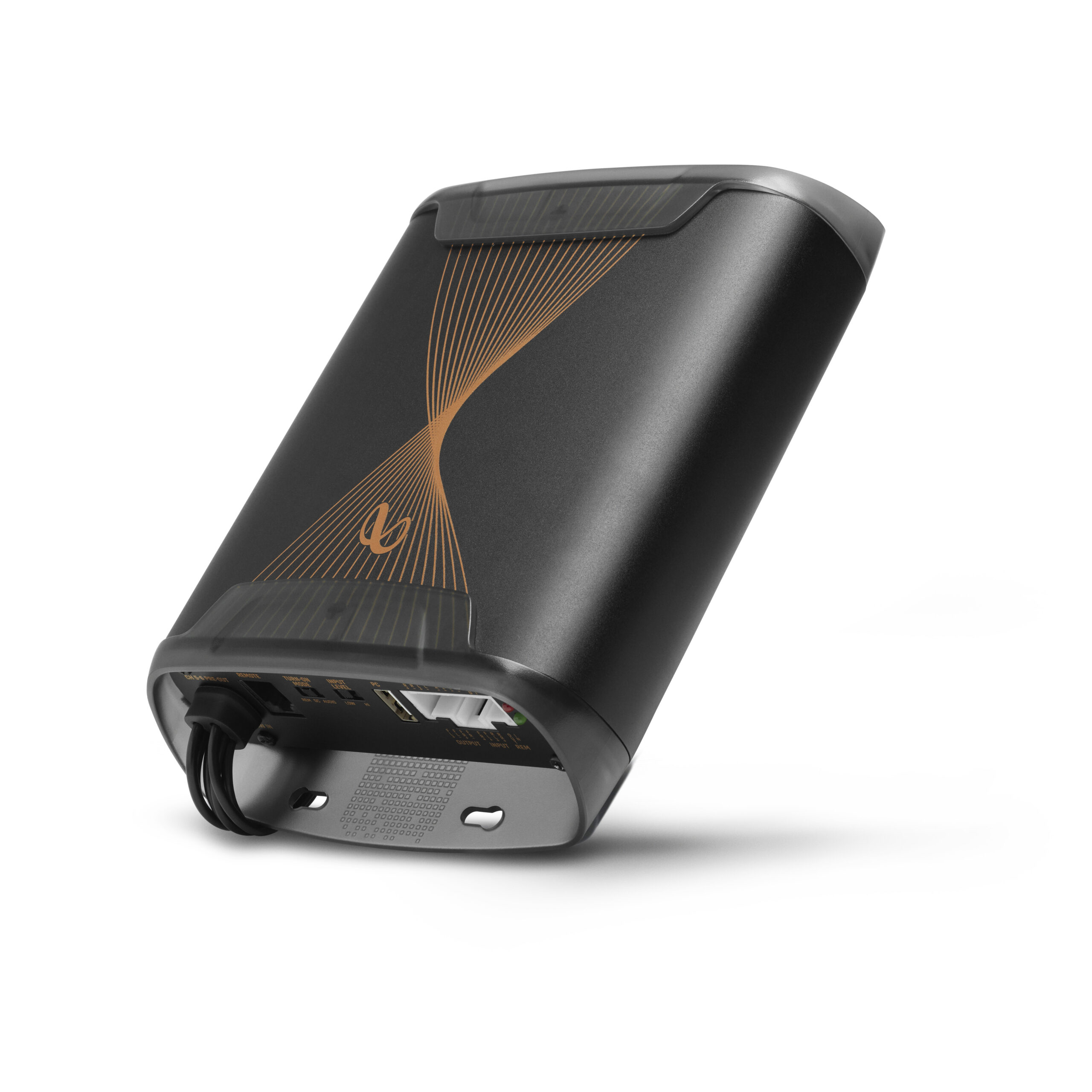

Infinity DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is
a self-contained audio system with 4-channel audio inputs, 4-channel powered audio outputs,
2-channel pre-amp outputs, easy to use tuning interface and detailed tuning capabilities to
satisfy any enthusiast. With a USB connection to access the tuning interface using a Windows
PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay,
31-band parametric or graphic EQ adjustment, assignable input to output mixer with input
channel summing, channel gain, master volume control, clipping indicator to ensure the audio
output is not distorted and ability to save up to 10 presets

4 Channel Class A/B Technology
Dimension: 23cm X 14.5cm X 49cm
Amplifier Power: 200 MAX,
4ohms-25 Wrms X 4 Channels,
2ohms-35 Wrms X 4 Channels.
Full-Range Pre-Amp Outputs: 2-channel
Frequency Response 10Hz – 22kHz @ -3dB
Fuse: 15A
Selectable EQ adjustment: Parametric or Graphic
