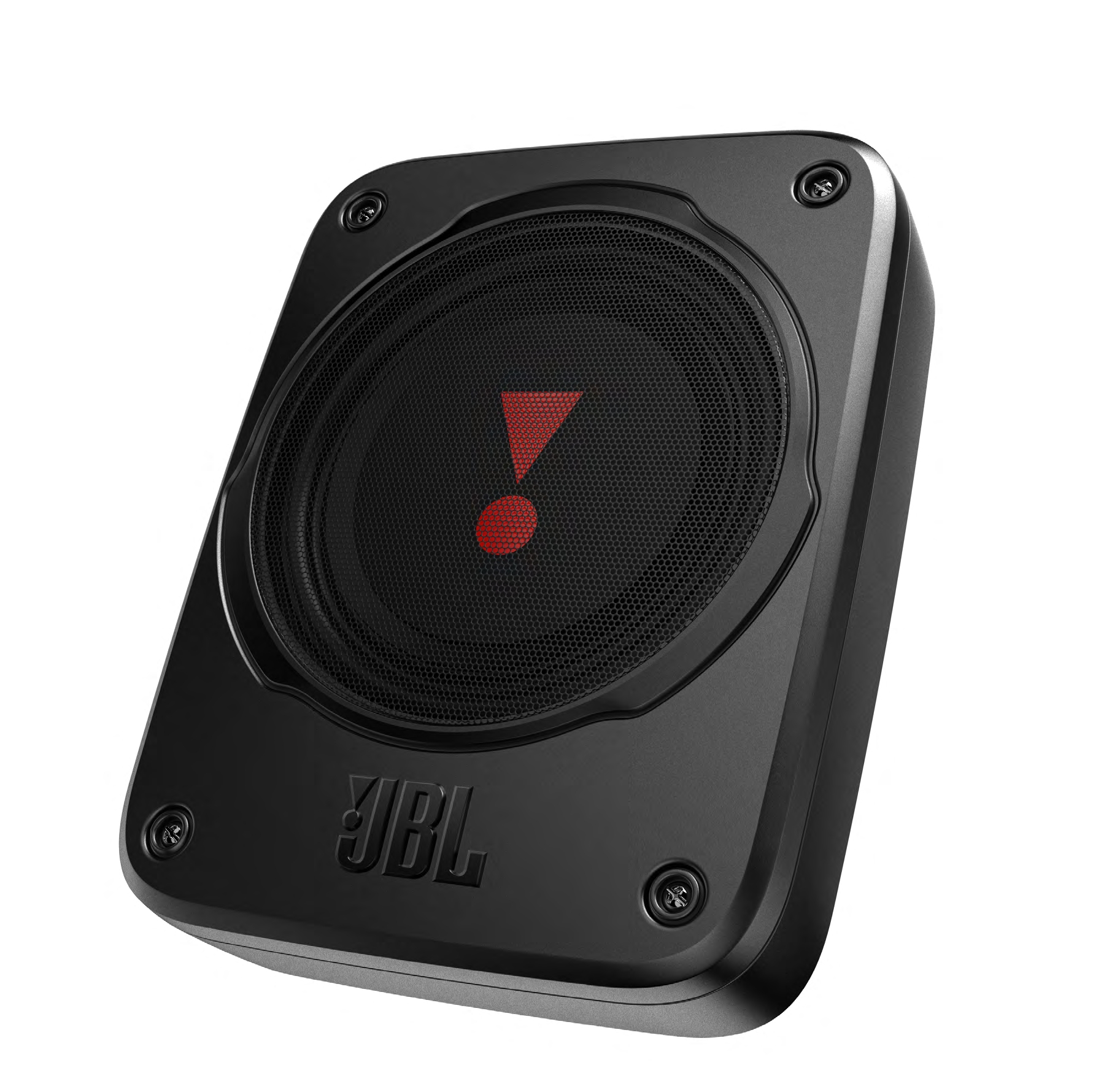

JBL BassPro LITE Subwoofer

Ultra-Compact Under Seat Powered Subwoofer System

JBL-BassPro-LITE

Description

Ultra-Compact , Super Bass , Powerful
JBL BassPro LITE delivers deep bass and takes up ultra-compact space.

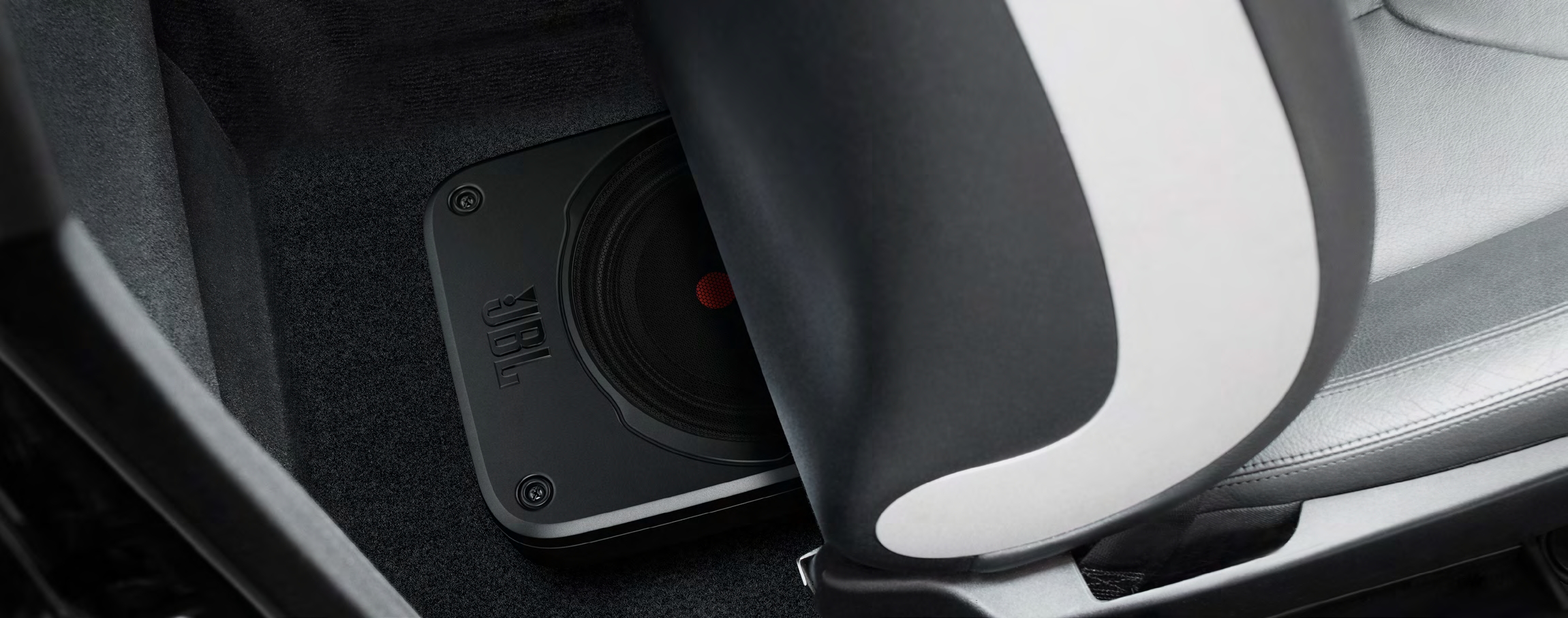

JBL’s smallest powered subwoofer can be hid in the most compact of
locations and deliver exceptional performance to any car audio
system. Powered by a 100Watts Amplifier, BassPro LITE delivers
accurate, tight bass you would expect from JBL, all while running cool
and drawing minimal current from your vehicles charging system.

Features

  • Big Bass,ultra-compact space
  • Upgrade easier , Connected in series
  • Intelligent Electronic Design for Reliable and Extraordinary Performance
  • Die-Casting Aluminum Enclosure Design
  • Bass boost Volume Control

Big Bass, Ultra-Compact Space

The JBL BassPro LITE delivers deep bass while occupying an ultra-compact space. Its on-board 100W RMS amplifier is performance-matched to the subwoofer, ensuring tight, accurate bass.

Easy Upgrade, Connected in Series

The JBL BassPro LITE can be connected in series for user upgrades, allowing the purchase of two devices. The secondary BassPro LITE adjusts itself without needing extra power or complex wiring.

Intelligent Electronic Design for Reliable and Extraordinary Performance

The BassPro LITE features high-pass filters and limiters that deliver exceptional performance, even at the limits.

Die-Casting Aluminum Enclosure Design

The all-die-cast aluminum enclosure design is ultra-compact and integrates elegant JBL industry design elements with powerful acoustic performance.

Bass Boost Volume Control

The bass boost volume control is integrated into the I/O panel, allowing you to adjust the sound freely.

  • Driver Complement: Super powerful 7” (178mm) Subwoofer
  • Amplifier Power: Class D, 100W RMS; 200W Max
  • Frequency Response: 30Hz – 150Hz
  • Fuse: 15A
  • Maximum Current Draw: 15A
  • Quiescent Current Draw: <600mA
  • Input Sensitivity: 0.18V – 5.0V Low-Level Input; 0.75V – 20V High-Level Input
  • Crossover Frequency: 50Hz – 150Hz
  • Crossover Slope: 12dB/octave
  • Bass Boost: 0dB to +12dB @ 50Hz
  • Dimensions (L x W x H): 10-1/4” x 8” x 2-9/16” (259.6mm x 203.1mm x 65.5mm)
  • Weight: 8 lbs (3.5kg)

What’s in the Box

  • 1x Under seat subwoofer
  • 4x Screws
  • 2x Wiring harnesses for power and speaker level input (300mm)
  • 1x 15A Fuse
